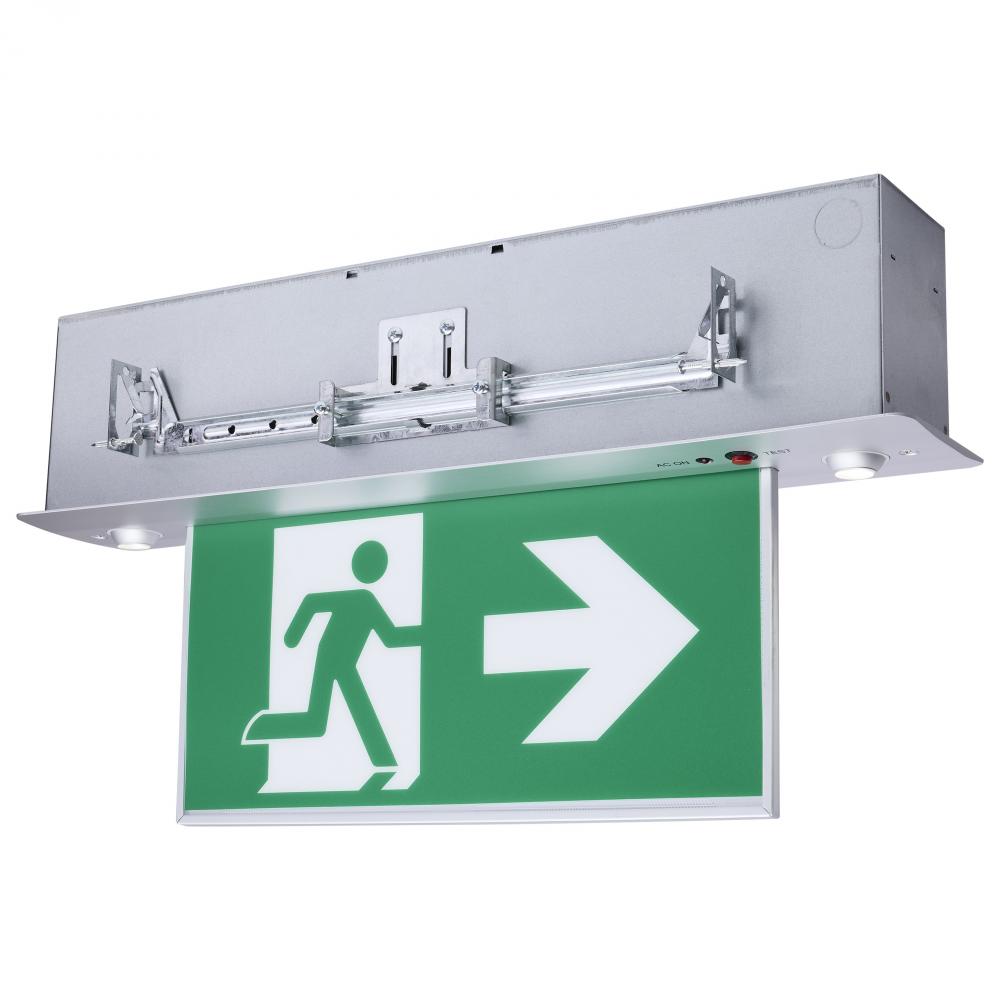

Running Man Green Combo Edge Lit Exit Sign/Emergency Light; 120-347V; 2HR backup; Single/Dual Face; (67/550)
by Satco Products Inc.
Running Man Green Combo Edge Lit Exit Sign/Emergency Light; 120-347V; 2HR backup; Single/Dual Face; Premium Flush Recessed Mounting
Product Specification
Item #
67/550
Dimensions
Height: 10.63"
Width: 19.74"
Additional product details
Vendor Item #
67/550
Option
LED
, Prop 65
Category
Lighting Products
Sub Category
Exit & Emergency
Style
Utility
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Non-Dimmable
Harmonized Codes
9405.61.6000
Lumens
120L
Ship Carton Height
8.07
Ship Carton Length
20.28
Ship Carton Width
6.77
Warranty
2-Years
Amps
0.029-0.010A
ANSI Base
Integrated
Battery Chemistry
Ni-Cad
CA Prop-65
Lead
Carton Cubic Feet
0.6412
Cartons Per Unit
1
CCT Selectable
No
CEC
Non-Compliant - Only for sale in Canada
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Country Of Origin
China
CRI
80+
Depth
5.35
Efficacy
34.29 LPW
Feature 1
Single or Dual Face
Feature 10
>500 Life Cycles
Feature 2
Integrated Battery Backup
Feature 3
Interchangeable Pictograms
Feature 4
Recessed Mounting; Accessories Included
Feature 5
Damp Location Rated
Feature 6
120-Minute Battery Run Time
Feature 7
Complies with ICES-005 Class B
Feature 8
CSA, OSHA, and NFPA Compliant
Feature 9
Push-to-Test Button
Finish Family
Metallic
Has Emergency Battery
Yes
Indoor Outdoor
Indoor
IP Rating
IP40
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Acrylic
Long Description
Keep your building safe and secure with the SATCO NUVO 67-550 LED Running Man Signs and Emergency Light Combos. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrow
Material
Aluminum
Mounting Procedure
Universal
Operating Frequency
50/60Hz
Operating Temprature
+10C (+50F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.45
Quantity In Pack
1
R9 Value
15
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs and Emergency Light Combos. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrows. Comb
Safety Listing
CSAus
SDS class
LED_Fixture
Short Description
EX COMBO-CAN-EL FL-AL
Sloped Ceiling Compatible
No
Specification Notes
Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
Temperature (CCT)
5700K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
120%-140%
Wattage Selectable
No
Weight Lb.
6.83
Manufactured By
Satco Products Inc.
Finish
