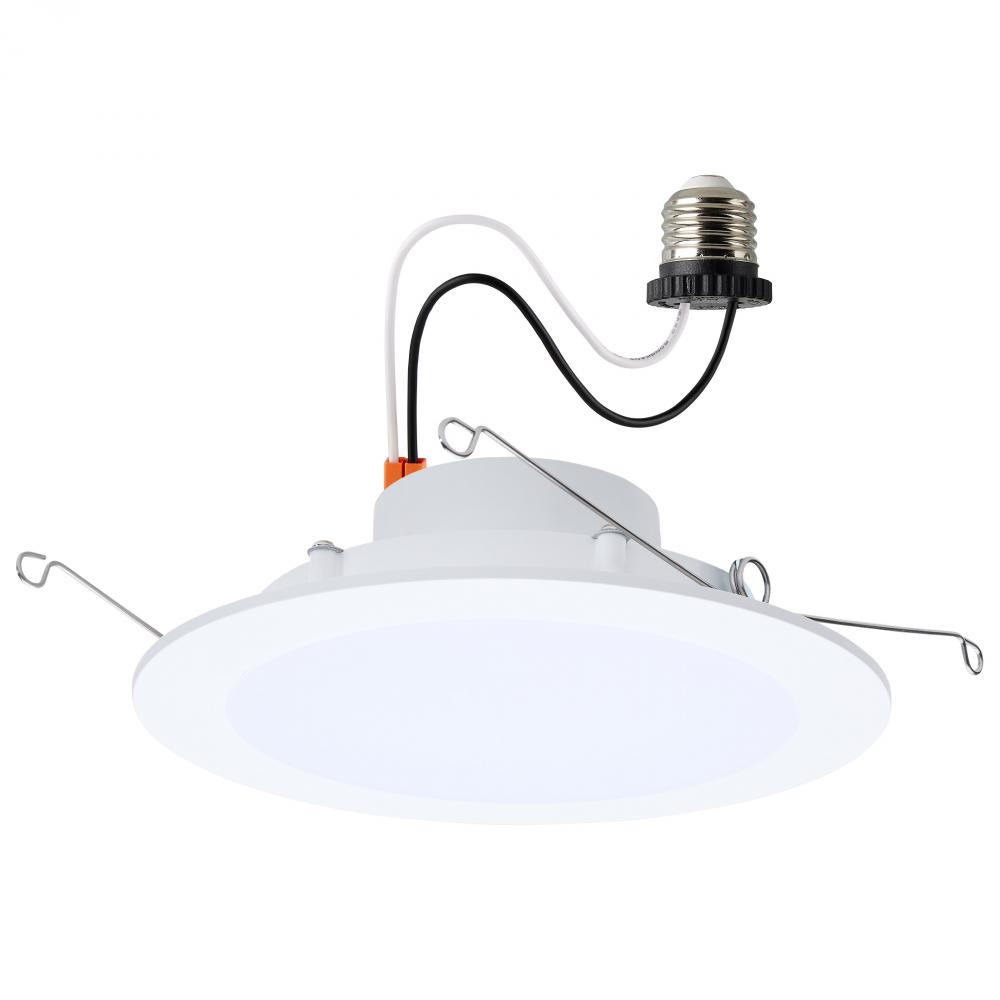

9/11/13 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 6 Inch; Flat Wafer; Round; Matte White (S11896)
by Satco Products Inc.
9/11/13 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 6 Inch; Flat Wafer; Round; Matte White Finish
Product Specification
Item #
S11896
Dimensions
Height: 2.28"
Width: 7.28"
Additional product details
Vendor Item #
S11896
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Type
LED
Diameter
7.28
Dimmable
Yes-Dimmable
Harmonized Codes
8539.52.0091
Lumens
900L/1200L/1400L
Ship Carton Height
7.68
Ship Carton Length
7.32
Ship Carton Width
2.4
Warranty
5-Years
Air Tight
Yes
Amps
0.11/0.125/0.135A
ANSI Base
E26 Adapter
Beam Spread
110
CA Prop-65
Lead
Can Size
6 in.
Carton Cubic Feet
0.0781
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Phase cut
Efficacy
100.00/109.09/107.69 LPW
ES Category
Downlight Solid State Retrofit
ES Unique ID
ESID-3994240
FCC Compliant
Yes
Feature 1
Field Selectable (3 wattages and 5 CCT)
Feature 10
5 Year Warranty
Feature 2
Flat Lens Design for Reduced Glare
Feature 3
Non-Conductive "Dead-Front" Trim
Feature 4
6-Inch Round, White Finish
Feature 5
Airtight Rated
Feature 6
90 CRI High Quality Illumination
Feature 7
Dimmable
Feature 8
Wet Location Rated
Feature 9
50,000 Hour Functional Life
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
85W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Matte Frosted
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's S11896 is a 6-inch, flat-faced PRO Series LED wafer-style retrofit downlight that pairs sleek design with field-selectable performance. Offering three selectable wattages (9W/11W/13W) and five color temperatures (2700K–5000K) via an on-u
Material
Plastic
Mounting Diameter
6
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
50
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's PRO Series LED wafer-style retrofit downlights offer a sleek, high-performance lighting solution with effortless installation. Designed for versatility, these downlights come in 4-inch and 6-inch round models with a choice of flat-face or
Safety Listing
cETLus - Classified
SDS class
LED_Fixture
Short Description
13WLED/DLR/6/FS/WF/RND/WH
Sloped Ceiling Compatible
No
Specification Notes
Default CCT setting is 2700K; Default Wattage setting is 11W
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Trim Material
Plastic (PS)
Wattage Selectable
Yes
Weight Lb.
0.55
Manufactured By
Satco Products Inc.
